How to Print Barcodes on a Label Printer

Over 6 billion barcode scans occur every single day across retail, logistics, and healthcare industries worldwide. For businesses managing inventory, shipping, or asset tracking, understanding how to print barcodes on a label printer is a foundational operational skill. Dedicated label printers produce scannable barcodes faster, cheaper, and more reliably than standard desktop printers — but only when configured correctly. The process involves selecting the right symbology, pairing compatible software, and calibrating output for consistent scans.

Barcode printing errors — smudging, incorrect sizing, or incompatible symbology — account for a measurable share of warehouse misfires and point-of-sale failures. The difference between a barcode that scans on the first pass and one that requires multiple attempts often comes down to printer type, label media, and software settings. Thermal printers outperform inkjet models in barcode applications because they produce crisp edges without ink bleeding, which is critical for narrow-bar symbologies like UPC-A and Code 128.

This guide covers the complete workflow — from choosing hardware and software to optimizing print settings for long-term barcode reliability.

Essential Equipment for Barcode Label Printing

Printing scannable barcodes requires three components working in sync: a capable printer, the correct label stock, and barcode generation software. Skipping any one of these creates problems that surface at the scanner, not at the printer.

Thermal Direct vs. Thermal Transfer Printers

Two thermal technologies dominate the barcode label market:

• Direct thermal — uses heat-sensitive label stock; no ribbon required. Barcodes fade over 6–12 months with light and heat exposure. Best for shipping labels, receipts, and short-lived tags. The Dymo LabelWriter 4XL is a widely used direct thermal option.
• Thermal transfer — melts ink from a ribbon onto the label. Produces durable barcodes that resist UV, moisture, and abrasion. Required for product labels, asset tags, and anything stored long-term.

For small-volume operations — home businesses, craft sellers, or pantry organization projects — a compact direct thermal printer handles barcode printing at minimal cost. High-volume warehouses and manufacturers need thermal transfer models with 300 DPI or higher resolution.

Choosing the Right Label Media

Label material directly affects scan reliability. Key factors include:

• Surface finish — matte labels reduce glare for laser scanners; gloss labels work with camera-based readers
• Adhesive type — permanent for product packaging, removable for temporary inventory tags
• Core size — must match the printer's spindle (common sizes: 1" and 1.5")
• Label width — standard barcode labels range from 1" to 4" wide; the barcode itself needs at least 1.25" of horizontal space for UPC-A at 100% magnification

Using compatible label tape and media prevents feed jams and ensures the thermal print head contacts the label surface evenly.

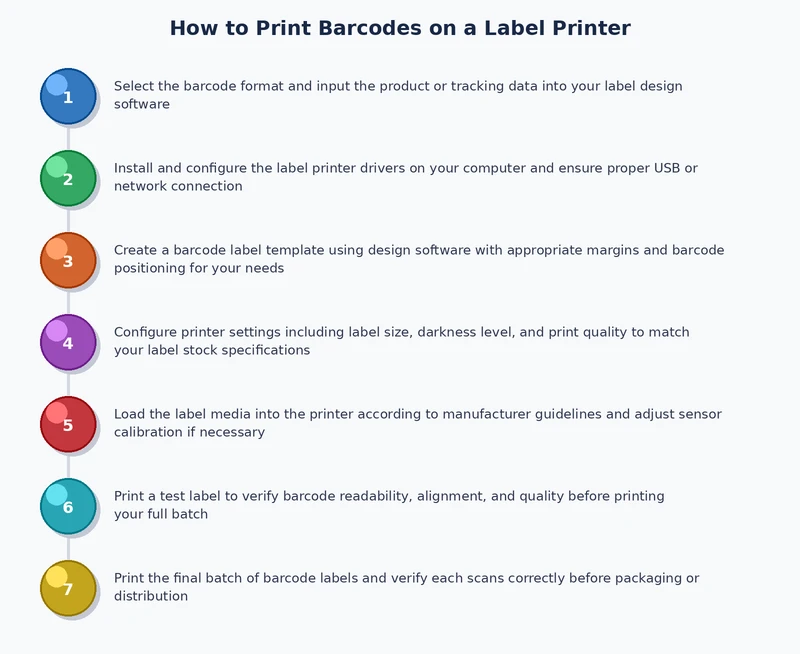

How to Print Barcodes on a Label Printer Step by Step

The actual printing process follows a predictable sequence regardless of printer brand or barcode type.

Software and Driver Configuration

1. Install the printer driver — download the latest driver from the manufacturer's website. Zebra, Brother, and Dymo each use proprietary drivers that expose thermal-specific settings like print speed and darkness.
2. Select barcode software — options range from free (ZebraDesigner Essentials, Avery Design & Print) to professional (BarTender, NiceLabel). Most label printers also support ZPL (Zebra Programming Language), an industry-standard command language.
3. Configure the label size — set width, height, and orientation in the printer driver properties, not just the design software. Mismatched settings cause offset printing.
4. Set the print mode — choose between tear-off, peel-off, or cutter mode based on the printer's hardware configuration.

Designing the Barcode Label

With the driver configured, the next step is building the barcode layout:

• Select the correct symbology — UPC-A for retail products, Code 128 for shipping and logistics, QR codes for URLs or large data payloads
• Enter the data string — this is the number or text encoded in the barcode
• Set the bar width ratio — the minimum bar width should be 0.0075" (0.19mm) for reliable scanning
• Add human-readable text below the barcode — required for UPC/EAN compliance and useful for manual lookups
• Include quiet zones — the mandatory blank space on each side of the barcode (minimum 0.25" for UPC-A)

Pro Tip: Always generate barcodes through the printer's native rendering engine rather than inserting barcode images. Native rendering scales correctly at any print resolution, while rasterized images often produce bars that are too thick or thin to scan.

Calibrating and Test Printing

1. Run the printer's built-in media calibration — this detects label gaps or black marks for accurate positioning
2. Print a single test label at the target speed and darkness settings
3. Scan the test barcode with the exact scanner model used in production — a barcode that scans with a handheld laser may fail under a fixed-mount camera scanner
4. Verify the data encoded matches the intended value
5. Adjust darkness up if bars appear faded; reduce speed if edges are jagged

Quick Setup Tips for Reliable Barcode Output

Resolution and Quiet Zone Settings

Print resolution has a direct impact on barcode scan rates:

• 203 DPI — standard for shipping labels, warehouse tags, and most 1D barcodes at 100% magnification or larger
• 300 DPI — required for small-format barcodes, jewelry tags, and labels under 1.5" wide
• 600 DPI — necessary for micro QR codes, pharmaceutical labeling, and barcodes printed below 80% magnification

Quiet zones — the blank margins flanking the barcode — are non-negotiable. A truncated quiet zone is the single most common reason a correctly printed barcode fails to scan. GS1 standards mandate a minimum of 9 times the narrowest bar width on each side.

Fixing Common Scan Failures

When barcodes print but fail to scan, the cause typically falls into one of these categories:

• Print head contamination — clean with isopropyl alcohol on a lint-free swab every 5,000 labels
• Incorrect darkness setting — too dark causes bars to bleed together; too light produces incomplete bars
• Wrong symbology selected — a scanner configured for Code 39 will not read a Code 128 barcode even if printed perfectly
• Scaling errors — resizing a barcode in graphic design software distorts the bar-to-space ratio
• Worn print head — thermal heads degrade after 1–3 million inches of printing; replacement is required, not optional

Advantages and Limitations of Dedicated Barcode Label Printers

Dedicated label printers handle barcode output more effectively than general-purpose printers, but they come with trade-offs. For a broader comparison, the differences between label printers and regular printers for shipping apply directly to barcode use cases.

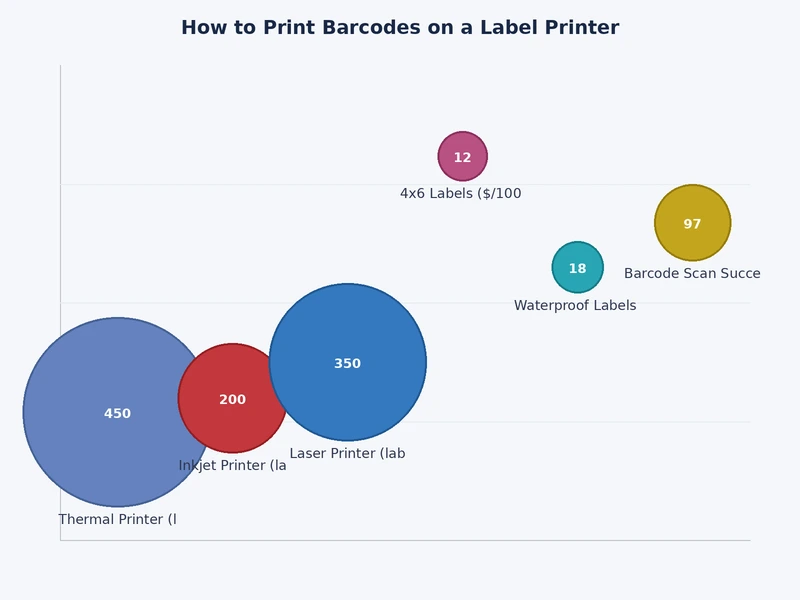

Cost Per Label Breakdown

The cost-per-label gap widens dramatically at scale. A business printing 500 barcode labels per day saves over $1,000 annually by switching from inkjet to direct thermal — and gains a 4x speed increase in the process. The upfront hardware cost of a thermal label printer typically pays for itself within 2–3 months of moderate use.

The primary limitation is flexibility. Thermal printers handle single-color output on specific label stock. Full-color barcodes, glossy product packaging, or non-standard materials require alternative printing methods.

Building a Scalable Barcode Printing Workflow

A single USB-connected label printer works for small operations, but growing businesses need a system that handles volume without creating bottlenecks.

Network and Shared Printer Setup

Placing a barcode label printer on the network allows multiple workstations to print without physical proximity to the device. Key considerations:

• Use Ethernet-connected or Wi-Fi models for shared access — connecting a Dymo printer to Wi-Fi takes under 10 minutes with the right configuration
• Install identical drivers on all connected machines to prevent formatting inconsistencies
• Set a default label template across the network to prevent ad-hoc formatting that breaks barcode standards
• Consider a shared printer configuration with access controls to prevent unauthorized template changes

Database-Driven Batch Printing

For operations printing hundreds or thousands of unique barcodes, manual entry is impractical. Database integration connects the barcode printer directly to inventory or product management systems:

1. CSV/Excel import — most label software supports batch printing from spreadsheet data. Each row becomes a unique barcode label.
2. ODBC/SQL connection — professional software like BarTender connects directly to MySQL, SQL Server, or Oracle databases for real-time data pulls.
3. API integration — modern label printers with cloud connectivity accept print jobs via REST APIs, enabling automated barcode generation from e-commerce platforms, WMS, and ERP systems.
4. Sequential numbering — serialized barcode generation handles batch runs (e.g., asset tags 00001 through 10000) without a database.

Businesses that outgrow single-station printing should evaluate industrial-grade printers with 203–600 DPI resolution and 10,000+ daily duty cycles. The Brother QL-800 bridges the gap between desktop and industrial use for mid-volume operations.

Frequently Asked Questions

Key Takeaways

• Thermal label printers produce the most reliable barcodes at the lowest cost per label, with direct thermal suited for short-term labels and thermal transfer required for durable, long-lasting barcodes.
• Always use the printer's native barcode rendering engine rather than inserting barcode images, and maintain proper quiet zones to ensure consistent first-scan success rates.
• Print head maintenance — cleaning every 5,000 labels and replacing annually for high-volume use — prevents the most common barcode scan failures.
• Scalable workflows depend on network printer access and database-driven batch printing, which eliminate manual data entry bottlenecks as label volume grows.
