What Is Sublimation Printing and How Does It Work?

Sublimation printing works by converting solid dye directly into gas — bypassing liquid entirely — and bonding that gas permanently into polymer fibers or coatings under heat and pressure. Understanding how does sublimation printing work is foundational for anyone serious about producing vibrant, wash-resistant graphics on polyester textiles and hard goods, and our team covers the full range of specialty output methods in our printing tips and guides.

The appeal is straightforward: sublimation produces photo-realistic, full-bleed output with no surface texture, no cracking, and no peeling, because the dye lives inside the substrate rather than sitting on top of it. Unlike screen printing or heat transfer vinyl, sublimation integrates at the molecular level, which is why our team consistently recommends it for high-wear applications — sportswear, drinkware, ceramic tiles, and custom home goods.

That permanence comes with real constraints. Sublimation only bonds to polyester and polymer-coated hard substrates, making cotton, bare wood, and uncoated metals non-starters without surface treatment. Knowing those boundaries upfront saves wasted materials and avoids the frustration that trips up most people entering this space for the first time.

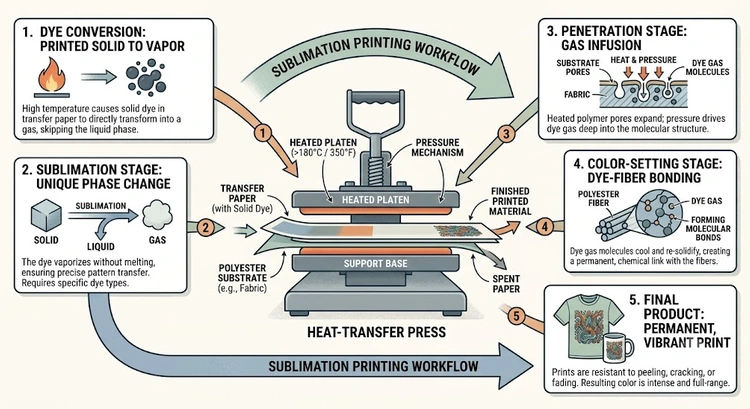

The Science Behind Sublimation: How the Process Actually Works

The word "sublimation" comes from chemistry, where it describes the direct phase transition of a solid to gas without passing through a liquid state — a phenomenon thoroughly documented in Wikipedia's entry on sublimation (phase transition). In printing, that same principle is harnessed with specialized disperse dyes that volatilize under controlled heat, driving dye molecules in gaseous form into open polymer chains within the substrate.

Phase Transition Chemistry

Sublimation inks are formulated from disperse dye molecules suspended in a water-based carrier. At room temperature they are inert — stable on transfer paper and inside the cartridge. Once heat rises above roughly 375°F (190°C), those dye molecules volatilize and migrate in gaseous form toward the polymer chains of a polyester fiber or polymer coating.

• The dye is solid at ambient temperature — no liquid migration, no bleeding before pressing
• Heat causes rapid volatilization, flooding the substrate surface with dye gas
• Polymer chains expand thermally, creating pores that accept dye molecules
• On cooling, chains close and dye is permanently trapped at a molecular level — not on the surface

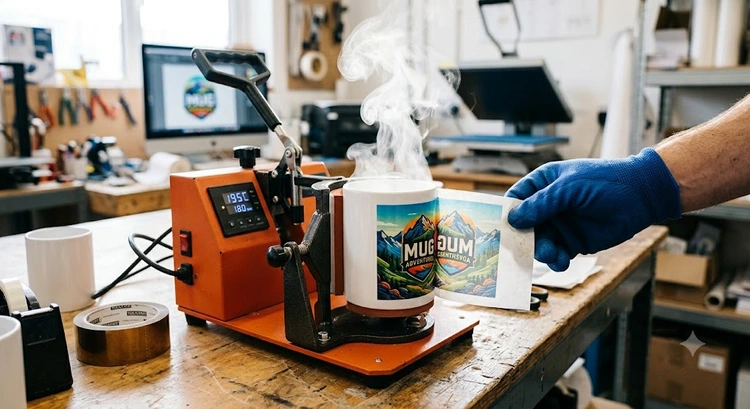

The Role of Heat and Pressure

Pressure in sublimation is mechanically critical, not optional. Firm, even contact between transfer paper and substrate determines whether dye gases penetrate the full depth of the polymer coating or merely skim the surface layer and produce a washed-out print. Our team uses 40–50 PSI as a baseline and adjusts upward for thicker polymer coatings on ceramic and metal blanks.

• Too little pressure: shallow dye penetration, muted and undersaturated colors
• Too much pressure: crushing delicate substrates like thin-wall mugs or acrylic panels
• Uneven pressure: banding and gradient shifts visible across the transfer area

Pro insight: Always pre-press substrates for 5–10 seconds to drive out residual moisture before the transfer — steam pockets from trapped humidity disrupt dye migration and leave blotchy, uneven areas in the finished print.

Sublimation's Strengths and Limitations Side by Side

Anyone comparing sublimation to other print methods should read our detailed breakdown in DTF vs Sublimation Printing: What's the Difference?, where our team covers the technical trade-offs in depth. The short version is that sublimation wins on durability and color vibrancy but loses on substrate flexibility — and those two facts together define almost every purchasing and workflow decision in the space.

Where Sublimation Excels

• Color gamut and vibrancy: sublimation reproduces extremely saturated, photographic-quality output because the dye becomes part of the substrate rather than coating it
• Wash durability is essentially permanent — dye doesn't sit on the surface where friction and detergent can attack it cycle after cycle
• Full-bleed edge-to-edge coverage is achievable with zero raised surface texture on finished products
• No white ink layer is required on white or light substrates — the base material shows through naturally, simplifying the print process
• Soft hand feel on polyester fabric — none of the stiffness associated with screen printing plastisol or heat transfer vinyl

Where It Falls Short

• Strictly limited to white or light-colored substrates — disperse dye is transparent, not opaque, so dark backgrounds overpower the print entirely
• Natural fibers (100% cotton, linen, wool) have zero affinity for disperse dye — poly content must exceed 65% for acceptable adhesion, and 100% polyester is the only professional-grade standard
• Initial cost of a dedicated sublimation printer, heat press, and polymer-coated blanks is meaningful compared to iron-on or direct inkjet transfer methods
• Sublimation paper and inks have humidity sensitivity — improper storage causes ink bleed on the paper before it ever reaches the press, wasting a full print

Equipment and Materials: Building a Capable Setup

Getting the equipment stack right from the start prevents the majority of quality issues most people encounter when learning sublimation. Our team has tested setups ranging from converted Epson EcoTank machines to dedicated Sawgrass units, and the performance patterns are consistent across every test batch.

Printers and Inks

Two main hardware paths dominate the entry-level and mid-volume market:

• Converted inkjet printers (Epson EcoTank, Epson WorkForce) — lower entry cost, require flushing OEM ink and refilling with sublimation ink; voids the manufacturer warranty and requires manual ICC profiling
• Dedicated sublimation printers (Sawgrass SG500, SG1000) — higher upfront cost, but purpose-built ICC profiles and factory-matched inks deliver better color consistency from the first print

Our team's recommendation is unambiguous: for production volume above 50 units per month, a dedicated Sawgrass unit pays for itself quickly in reduced ink waste and profiling overhead alone. For hobbyists and crafters, a converted EcoTank with quality third-party sublimation ink is entirely viable when paired with a manually calibrated ICC profile.

Substrates That Actually Work

For detailed guidance on hard goods including ceramic drinkware, our team's walkthrough on how to print on sublimation mugs at home covers the full workflow with time, temperature, and pressure specifics for cylindrical pressing.

• 100% polyester fabric (white or light only): shirts, jerseys, pillowcases, tote bags, mouse pads
• Polymer-coated ceramic: mugs, tiles, ornaments, coasters
• Polymer-coated aluminum: panels, license plates, photo panels, name badges
• Polymer-coated hardboard: framed prints, plaques, wall art
• Polymer-coated glass and acrylic: less common, requires high-quality coating and lighter pressure to avoid fracturing

Getting the Most Out of Every Sublimation Print Run

Knowing how does sublimation printing work at the chemistry level translates directly into better process discipline — fewer wasted blanks, more consistent color, and tighter registration across production runs that would otherwise drift as operators get fatigued or rush between presses.

Pre-Press Preparation

1. Mirror the image in design software before printing — failing to do this is the single most common beginner mistake and it produces a completely unusable transfer
2. Print on dedicated sublimation paper using the correct ICC profile matched to the ink brand and substrate combination
3. Allow prints to dry for at least 15–30 minutes before pressing — wet ink transfers unevenly and smears under direct pressure contact
4. Secure transfer paper to the substrate with heat-resistant tape on all four edges to prevent ghosting from paper shift during and after the press cycle
5. Pre-press the substrate for 5–10 seconds to eliminate surface moisture and degas any off-gassing from polymer coatings — particularly important for MDF-core hardboard blanks

Warning: Never reuse sublimation transfer paper — even a brief re-press deposits residual dye in unpredictable patterns, and the ghost imagery from the first transfer will contaminate the new print with visible double exposure artifacts.

Heat Press Settings by Substrate

Diagnosing and Fixing Common Sublimation Problems

Most sublimation defects fall into predictable categories, and the root cause is almost always one of three variables: incorrect temperature, moisture contamination, or paper movement during or after pressing. Our team addresses these systematically rather than adjusting settings blindly until something improves.

Color Shift and Ghosting

• Ghosting (faint double image alongside the main transfer): caused by paper moving between the moment the press opens and the paper is removed — tape all edges firmly and peel paper in one swift, decisive motion immediately after opening
• Color shift toward blue-green: substrate temperature too low — dye didn't fully volatilize, leaving warm-channel pigments undertransferred relative to cool channels
• Color shift toward yellow-orange: overpress — dye gases migrated too deeply into the coating and disrupted the ICC color balance established during profiling
• Faded, washed-out overall: substrate not rated for sublimation, or poly content too low — check the blank specification sheet before pressing an entire production run

Uneven Pressure and Faded Output

• Banding or visible pressure lines across the transfer: platen not calibrated flat — pressure paper across the full platen surface reveals high and low zones before they ruin a production batch
• Corners consistently lighter than the center: common on older swing-arm presses with compressed pad material — replace the upper element pad or shim the corner zones to restore even contact
• Streaky ink visible on transfer paper before pressing: humidity in the print environment absorbed by the paper surface — store sublimation paper sealed in a low-humidity environment and print day-of whenever possible

Building a Consistent Long-Term Sublimation Workflow

The operators who sustain consistent sublimation quality over time treat the process as a system, not a series of one-off presses. Most people underestimate how much ink chemistry, environmental control, and substrate sourcing contribute to long-term output consistency across dozens or hundreds of production runs.

Ink and Paper Management

• Run a nozzle check and short test print weekly on dedicated sublimation printers — sublimation ink clogs piezo print heads significantly faster than standard dye ink when the printer sits idle between sessions
• Store sublimation ink in a cool, dark environment — UV exposure degrades disperse dye chemistry and introduces unpredictable color shift that won't reveal itself until the press cycle
• Source paper and ink from the same brand family where possible — ICC profiles are calibrated as a matched system, and mixing brands introduces color variables that compound across substrate types
• Never leave sublimation paper open in a humid room — even overnight moisture absorption affects transfer efficiency and causes visible ink bleed on the paper surface before the substrate ever touches the press

Scaling from Hobby to Production

• Batch similar substrates together in each press session — calibration for ceramic differs meaningfully from polyester fabric, and frequent switching between substrate types adds calibration overhead and increases error rate
• Invest in a rotary mug attachment for cylindrical items if volume exceeds 20–30 units per week — wraparound coverage is cleaner and more consistent than a C-clamp style mug press at that volume
• Document time, temperature, and pressure for every substrate combination and track print quality across ink batches — this creates a repeatable reference that survives equipment changes, operator turnover, and seasonal humidity shifts
• For multi-operator setups, consider a dedicated sublimation-certified RIP software layer that manages ICC profiles centrally and prevents individual workstations from applying conflicting color corrections to the same output queue

Frequently Asked Questions

Final Thoughts

Sublimation is one of the most rewarding specialty print processes available to both hobbyists and production shops precisely because its durability and color vibrancy are genuinely difficult to match with competing methods. Our team recommends starting with a polymer-coated hard good — a mug or aluminum panel — before moving to fabric, since hard goods provide immediate visual feedback on temperature and pressure calibration without the added complexity of fabric stretch, weave variation, and moisture retention. Anyone ready to go deeper will find substrate-specific walkthroughs and hands-on process guides across our full printing tips and guides section, built around the same foundational chemistry described here.
