How to Clean Printhead on an Inkjet Printer

According to HP's internal service data, nearly 50% of all inkjet printer failures trace back to clogged or degraded printheads. If you've ever pulled a print off the tray only to find banding, missing colors, or blank streaks, you already know the frustration. Learning how to clean printhead inkjet printer components properly can save you from an expensive replacement and restore output quality to factory-fresh levels. The process ranges from a simple software utility cycle to a full manual soak, depending on how severe the blockage is. Before you assume your printer is beyond saving, consider that most clogs respond well to the right cleaning method — and the supplies cost a fraction of a new printhead assembly.

The approach you take depends on your printer's architecture. Canon and HP models with user-replaceable printheads allow direct access to the nozzle plate. Epson's permanent PrecisionCore and Micro Piezo heads require more cautious intervention since a damaged head means replacing the entire printer. Either way, a systematic cleaning routine keeps nozzle performance consistent — especially critical if you're doing photo printing at home where even a single misfiring nozzle shows up immediately on glossy output.

This guide covers every tier of printhead cleaning, from built-in utilities to deep soaking, along with the costs, tools, and maintenance habits that prevent clogs from recurring.

Why Inkjet Printheads Clog in the First Place

Understanding the cause determines the cure. Printhead nozzles on a typical consumer inkjet measure between 20 and 50 microns in diameter — smaller than a human hair. At that scale, even trace contamination disrupts ink flow. Two primary failure modes account for the vast majority of clogs.

Ink Drying and Pigment Settling

Inactivity is the top killer. When you leave an inkjet idle for more than two weeks, residual ink in the nozzle channels begins to dry and form a semi-solid plug. Pigment-based inks are especially prone because the suspended particles settle and bond to the nozzle walls. Dye-based inks dry slower but still solidify eventually.

• Pigment black clogs fastest — it carries the densest particle load
• Warm, dry environments accelerate evaporation at the nozzle face
• Printers without airtight capping stations lose moisture faster
• Third-party inks with inconsistent viscosity increase clog risk

This is also why users who switch between ink types — say, swapping dye cartridges for pigment — sometimes trigger immediate clogs. The chemistries react and coagulate inside the channels. If you're weighing tank vs cartridge systems, note that EcoTank-style printers keep nozzles wet more consistently because the ink reservoir maintains positive pressure.

Air Bubbles and Cartridge Issues

Air ingress during cartridge changes introduces bubbles that block ink flow without any physical debris. You'll see intermittent missing lines rather than consistent banding. Improperly seated cartridges, damaged O-rings, or running a cartridge dry all introduce air into the ink path. A few cleaning cycles usually purge these bubbles, but persistent air leaks require reseating or replacing the cartridge itself.

Tools and Supplies for Printhead Cleaning

Gather everything before you start. Using tap water or paper towels — common mistakes — can deposit minerals or leave fibers that make the problem worse.

• Distilled water — zero mineral content; the only safe solvent base
• Lint-free microfiber cloths or coffee filters (not paper towels)
• Isopropyl alcohol (91% or higher) for stubborn dried pigment
• Shallow tray or dish for soaking
• Blunt-tip syringe (10–20 mL) with flexible tubing for pressure flushing
• Printhead cleaning solution (commercial kits from PrintHead Doctor or similar)
• Rubber gloves — inkjet ink stains skin for days
• Paper towels for the work surface (not for the printhead itself)

Most of these items cost under $15 total if you don't already have them. The syringe kit is optional for basic cleaning but essential for the advanced techniques covered later. If your printer has been producing blurry or degraded output, having the full kit ready saves you from stopping mid-process.

Software Cleaning vs Manual Printhead Cleaning

Always start with the least invasive method. Software cleaning costs nothing but ink. Manual cleaning risks physical damage if done carelessly. Here's how to approach each tier when you need to clean printhead inkjet printer nozzles.

Built-In Utility Cycles

Every inkjet ships with a built-in head cleaning utility accessible through the printer driver or the control panel. The process forces ink through the nozzles under pressure to dislodge dried deposits.

1. Open your printer's maintenance menu (Settings → Maintenance on most models)
2. Run a nozzle check pattern first — this prints a diagnostic grid showing which channels are blocked
3. Execute the standard cleaning cycle (takes 2–5 minutes)
4. Print another nozzle check to compare results
5. If gaps remain, run a second cycle — but stop at three consecutive runs

Three cycles is the practical limit. Beyond that, you're burning ink without meaningful improvement — each cycle on a typical Canon PIXMA consumes roughly 2–3 mL of ink per color. Some models offer a "deep clean" or "power clean" option that uses significantly more ink and higher pressure. Reserve that for cases where standard cycles show partial but incomplete improvement.

Manual Soaking Method

If software cleaning fails, manual intervention is the next step. This applies to printers with removable printheads (most Canon PIXMA and HP OfficeJet models). Epson owners should skip to the syringe method since their heads don't detach.

1. Power off the printer and unplug it
2. Open the carriage access door and remove the ink cartridges
3. Release the printhead latch and carefully lift the printhead assembly out
4. Place it nozzle-side down in a shallow tray with 1 cm of warm distilled water
5. Let it soak for 10–15 minutes — extend to several hours for severe clogs
6. Gently blot the nozzle plate with a lint-free cloth — you should see ink transferring
7. Reinstall, run two software cleaning cycles, then print a nozzle check

For dried pigment clogs that resist plain water, substitute a 50/50 mix of distilled water and isopropyl alcohol. Some technicians use ammonia-based solutions at a 10:1 dilution for particularly stubborn deposits, though this carries more risk on thermal printheads.

Maintaining Your Printhead Between Deep Cleans

Prevention outperforms every cleaning technique. A few simple habits dramatically reduce clog frequency and extend printhead life.

• Print something at least once a week — even a single color test page keeps all channels active
• Keep the printer in a climate-controlled room (60–80°F, 40–60% humidity)
• Always use the printer's power button to shut down — this parks the carriage on the capping station properly
• Never pull the power cord while the printer is on; improper shutdown leaves nozzles exposed
• Use OEM or high-quality third-party inks with consistent formulation

If you know the printer will sit idle for a month or more, run a cleaning cycle before the downtime and seal the cartridge vents with tape to slow evaporation. Some users print a weekly test page on cheap paper specifically for maintenance. That minor ink cost is trivial compared to a $40–$80 replacement printhead. This same consistency matters for color-critical work — if you're running color calibration profiles, clogged nozzles invalidate the entire calibration.

For printers that also exhibit unusual mechanical noise during cleaning cycles, check the carriage path and encoder strip. Sometimes what seems like a clog issue is actually a mechanical problem causing grinding that prevents the cleaning station from sealing properly.

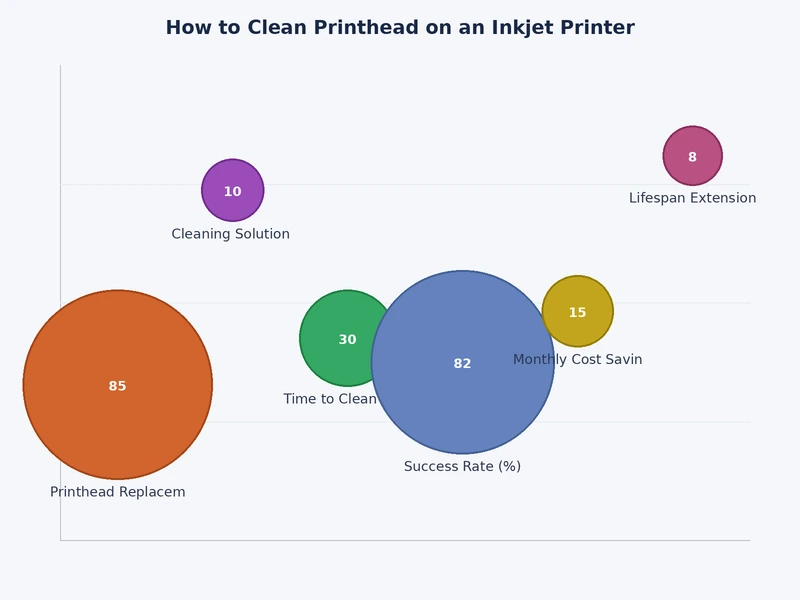

What Printhead Cleaning Actually Costs

The economics of printhead cleaning depend heavily on whether you're dealing with a replaceable head or a permanent one. Here's a breakdown of typical costs across cleaning methods.

The ink consumed during software cleaning cycles adds up. On a printer using $15 cartridges with 5 mL capacity, three deep clean cycles burn through roughly half a cartridge per color — $30–$45 in ink across a four-color system. That's why escalating to manual methods early often saves money compared to repeated software cycles.

For high-volume users running cost-sensitive photo workflows, the math favors investing in a syringe kit and cleaning solution upfront. The $15 investment pays for itself after a single avoided cartridge replacement.

Advanced Techniques for Stubborn Clogs

When standard soaking fails, two advanced methods handle the most severe blockages. Both carry higher risk and require careful execution.

Pressure Flushing With a Syringe

Syringe flushing forces cleaning solution directly through individual ink channels. It's the most effective manual technique for partially cleared clogs that resist soaking.

1. Remove the printhead and place it on a folded paper towel
2. Fill the syringe with warm distilled water or cleaning solution
3. Attach flexible tubing that fits snugly over the ink intake port
4. Apply slow, steady pressure — never force the plunger if you feel resistance
5. You should see fluid weeping from the nozzle plate; colored fluid indicates ink is moving
6. Repeat for each color channel until the output runs clear

Excessive pressure will permanently damage the nozzle plate. Use gentle, sustained force rather than sharp pushes. If a channel is completely blocked and won't pass fluid, extend the soak time in cleaning solution before trying again. The goal is to dissolve the blockage, not force it through mechanically.

Ultrasonic Cleaning

Ultrasonic cleaners use high-frequency vibrations to agitate cleaning solution at the microscopic level, reaching deposits that manual methods can't touch. Small ultrasonic baths designed for jewelry or eyeglasses work well for printheads.

• Fill the bath with distilled water — not the jewelry cleaning solution that ships with the unit
• Submerge only the nozzle plate, not the entire printhead assembly
• Run for 3–5 minutes on the lowest setting
• Remove, blot dry, and test

This method works exceptionally well on piezoelectric printheads (Epson, Brother) where the head can't be removed from the printer for traditional soaking. You'll need to fashion a way to position the carriage over the ultrasonic bath — some technicians use a modified tray that sits inside the printer chassis. It's unconventional but effective for heads that have been clogged for months.

After any advanced cleaning, let the printhead dry for 10–15 minutes before reinstalling. Run the standard software cleaning cycle once, then print multiple nozzle check patterns to confirm full recovery across all channels. Expect the first few prints to show slight color shifts as fresh ink establishes consistent flow through the newly cleared nozzles.

Final Thoughts

You now have every method available for restoring a clogged printhead, from a five-minute software cycle to a full ultrasonic deep clean. Start with the built-in utility, escalate only as needed, and commit to printing at least one page per week to prevent future clogs. Grab a bottle of distilled water and run a nozzle check right now — catching a partial clog early takes minutes, while waiting until it dries completely can cost you an entire printhead.
