How to Print Sublimation Transfers at Home

What if a standard home printer setup could produce vibrant, wash-proof merchandise without a commercial print shop? Sublimation printing at home does exactly that — and the learning curve is shorter than most people assume. From mugs and shirts to phone cases and tote bags, the results rival professional output when the setup is dialed in correctly. Anyone looking to expand their home printing repertoire should explore the printing tips and guides collection for a broader look at specialty transfer methods.

The technology works differently from every other home print method. Sublimation ink converts from solid to gas under heat — typically 375–400°F — and bonds chemically with polyester fibers or polymer-coated surfaces. There is no surface layer. The dye becomes part of the material itself. For a thorough explanation of the underlying chemistry, What Is Sublimation Printing and How Does It Work? covers the fundamentals in accessible detail.

Three variables control every successful sublimation transfer: a compatible printer loaded with genuine sublimation ink, quality transfer paper, and a reliable heat press. Getting those three aligned is the entire challenge. This guide walks through each stage — from equipment selection and substrate compatibility through pressing technique, method comparisons, and honest cost breakdowns.

The Fundamentals of a Home Sublimation Setup

Choosing the Right Printer and Ink

Not every inkjet printer accepts sublimation ink. The most accessible entry point is converting an Epson EcoTank model — the ET-2720, ET-4800, or ET-15000. Epson's piezoelectric print heads tolerate sublimation ink without damage. Thermal print heads, used by Canon and HP consumer models, cannot. That distinction alone narrows the field significantly.

Purpose-built sublimation printers from Sawgrass — the SG500 and SG1000 — cost more upfront but arrive pre-configured. No conversion, no compatibility guessing. For a direct comparison between dedicated sublimation hardware and standard inkjet platforms, Dye Sublimation vs Inkjet Photo Printers lays out the trade-offs clearly.

Key printer selection criteria:

• Piezoelectric print head — required, not optional
• Compatible with third-party sublimation ink or proprietary cartridges
• Print width that matches the largest target substrate
• ICC profile availability for color accuracy

Sublimation ink is not interchangeable with standard dye or pigment ink. Mixing ink types damages print heads permanently. Confirm compatibility before purchasing any ink or printer combination.

Substrates That Work — and Those That Don't

Sublimation only bonds with polyester fibers or polymer-coated hard surfaces. Fabric substrates need at least 65% polyester for acceptable color saturation. At 100% polyester, colors are the most vivid. Cotton and natural fibers reject sublimation dye entirely — the gas passes through without bonding.

Hard goods must carry a factory-applied polymer coating. Uncoated ceramics, plain glass, and untreated wood don't work. For a step-by-step look at pressing hard goods, How to Print on Sublimation Mugs at Home walks through the mug-specific workflow in practical detail.

Substrate compatibility summary:

• Excellent: 100% polyester fabric, sublimation-coated mugs, coated phone cases, coated aluminum panels
• Acceptable: 65–80% poly blends — colors appear softer and slightly muted
• Not compatible: Cotton, linen, uncoated ceramics, standard glass, raw wood

Light and white substrates are a hard requirement. Sublimation ink is translucent. It won't show on dark backgrounds, which is one of the core limitations compared to newer methods like DTF printing.

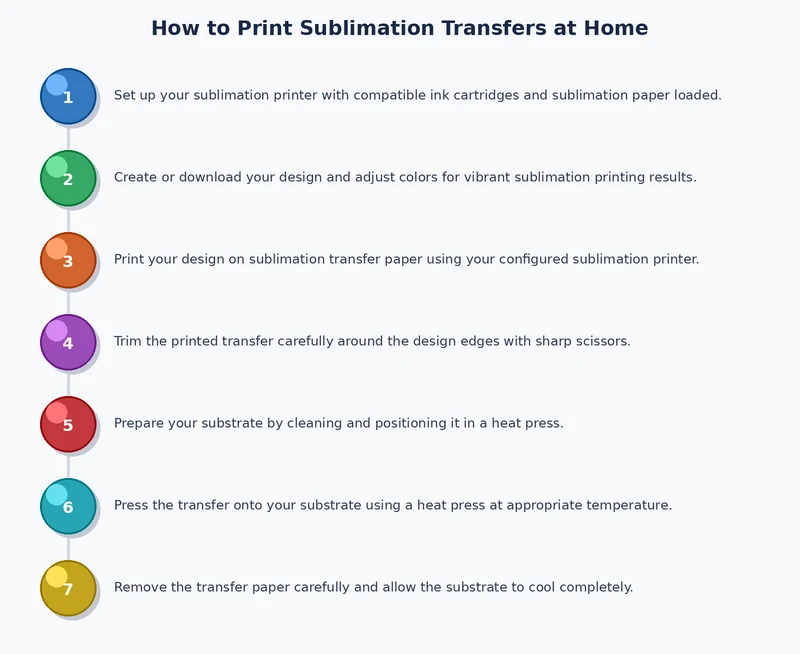

Steps for Printing Sublimation Transfers That Actually Work

Preparing the Design and Transfer Paper

Color management is the first challenge. Sublimation prints look dull and washed-out before pressing. That's normal. Most experienced users print designs 15–20% more saturated than the intended final color to account for the gas-phase transfer process. ICC profiles specific to the ink-paper combination help significantly with predictability.

Mirroring the design is non-negotiable. Text and asymmetric images must be flipped horizontally before printing. The transfer is pressed face-down, so a mirrored image becomes correctly oriented on the substrate.

Design preparation checklist:

• Work in RGB color mode — CMYK settings produce inaccurate output
• Load the correct ICC profile for the ink and paper combination
• Print at the highest quality setting available
• Let the print air-dry for at least 60 seconds before handling
• Handle dried transfers with lint-free gloves — oils affect dye adhesion

Transfer paper quality matters more than most beginners expect. Generic paper tends to bleed at high temperatures. Established options — A-SUB, TexPrint, Beaver — are widely used precisely because they hold ink cleanly until the press triggers the gas conversion.

Pressing for Consistent Results

A clamshell or swing-away heat press consistently outperforms a household iron. Irons create hot spots and uneven pressure. That produces ghost images — faint second impressions caused by movement — and inconsistent color across the transfer.

Standard press settings for polyester fabric:

• Temperature: 385–400°F (196–204°C)
• Time: 50–60 seconds
• Pressure: medium-firm, approximately 40 PSI

Hard goods require different parameters. Mugs typically press at 400°F for 180–210 seconds in a dedicated mug press. Tile and aluminum panels need longer dwell times and slightly higher pressure. Substrate-specific settings sheets are widely available from ink and blank suppliers.

Peel timing affects finish. Hot peeling immediately after pressing yields a slightly more vibrant result on fabric. Cold peeling — waiting 20–30 seconds — reduces the risk of smearing on rigid substrates. Test both approaches on scrap material before committing to production runs.

According to the Wikipedia entry on dye-sublimation printing, the process traces its roots to the 1950s and 1960s and has evolved into one of the most color-accurate transfer technologies available for both commercial and home applications.

How Sublimation Compares to Other Home Transfer Methods

Print Quality and Durability Side by Side

Sublimation's defining advantage is permanence. Because the dye bonds at a molecular level, there is no surface layer to crack or peel after washing. A properly pressed sublimation print will outlast the garment or object it's applied to under normal use conditions.

Heat transfer vinyl and inkjet iron-on paper sit on top of the fabric surface. Both are faster to set up and work on cotton, but they're vulnerable to cracking after repeated washing. For a head-to-head breakdown, Sublimation vs Heat Transfer Vinyl: Which Is Better for Crafts? covers the practical strengths and limitations of each approach.

DTF (direct-to-film) printing has grown rapidly because it works on dark fabrics and cotton — two areas where sublimation cannot compete. The trade-off is a higher-cost setup requiring film media and powder adhesive. DTF vs Sublimation Printing: What's the Difference? provides a thorough side-by-side comparison for home users deciding between the two.

Matching the Method to the Project

No single transfer method wins every category. The table below compares sublimation against the most common home alternatives across key decision factors:

Home users focused on light polyester and polymer-coated hard goods get the best value from sublimation. Those printing on cotton or dark apparel will find DTF or HTV more practical. For an alternative inkjet-based workflow when polyester isn't the substrate of choice, How to Print on T-Shirts at Home with an Inkjet Printer walks through a different approach entirely.

What Home Sublimation Printing Costs to Set Up and Run

Initial Equipment Investment

The minimum viable home sublimation setup — a converted Epson EcoTank, sublimation ink, transfer paper, and an entry-level clamshell press — typically runs $300–$450. Purpose-built setups using a Sawgrass SG500 plus a mid-range heat press land closer to $700–$900 before consumables.

Typical starter costs by component:

• Converted Epson ET-2720 or ET-4800: $150–$220
• Sublimation ink set (initial fill): $25–$60
• Transfer paper (100-sheet pack): $15–$30
• Entry-level clamshell heat press (9×12"): $80–$180
• Mug press attachment (optional): $40–$90

The heat press is the component worth spending more on. Budget presses with uneven platens produce inconsistent results and wasted blanks. Spending an extra $50–$80 on a mid-range press typically reduces waste enough to recoup the difference quickly.

Ongoing Per-Print Expenses

Sublimation ink is economical at scale. Average ink cost per print runs $0.05–$0.15 for a standard-sized design. Transfer paper adds $0.10–$0.25 per sheet. Blank polyester shirts cost $3–$8 each; sublimation-coated mugs run $1.50–$4.00 in bulk orders.

For a comprehensive per-item cost analysis across different product categories, How Much Does Sublimation Printing Cost? provides detailed calculations that are useful for anyone considering selling finished items.

At moderate home volume — 20–30 prints per month — most setups recoup equipment costs within 6–12 months when producing items for resale. The math depends heavily on substrate selection and whether the setup runs continuously or sits idle between projects.

Frequently Asked Questions

Final Thoughts

Home sublimation printing rewards those who take the time to calibrate their setup correctly — the right printer, the right ink, and a reliable heat press make all the difference between crisp professional results and wasted blanks. Anyone ready to get started should choose a compatible Epson EcoTank or a purpose-built Sawgrass printer, pick up a quality clamshell press, and run a few test prints on scrap fabric before moving to finished goods. The community of home sublimation printers is active and well-documented, making troubleshooting faster than ever for newcomers willing to experiment.
