How to Set Up a Print Server for a Small Business Network

What if a single device could eliminate the chaos of printer-sharing across an entire office floor? That's exactly the promise of a well-planned print server small business setup — and our team has seen it transform disorganized, complaint-heavy print environments into smooth, centrally managed workflows. For anyone starting from scratch, our overview at how to set up a print server for a small business lays the groundwork. This post goes further — covering hardware selection, step-by-step configuration, real-world use cases, and the troubleshooting steps our team reaches for when things go sideways.

A print server (a device or software layer that manages printer access across a network) lets every computer on the same network send jobs to a shared printer — no USB cable, no host machine required to stay on. For small businesses running three or more workstations, this single infrastructure change can eliminate most "the printer isn't responding" support calls. It also sets the stage for more advanced features like print auditing, quota enforcement, and driver centralization.

Our team has configured both hardware print servers and software-based solutions across offices ranging from five to fifty users. The performance and management differences between approaches are real, and the right choice isn't always obvious upfront. Before even choosing a printer model, understanding the server layer matters — especially for businesses weighing whether to lease or buy their office printers, since print server compatibility affects total cost of ownership.

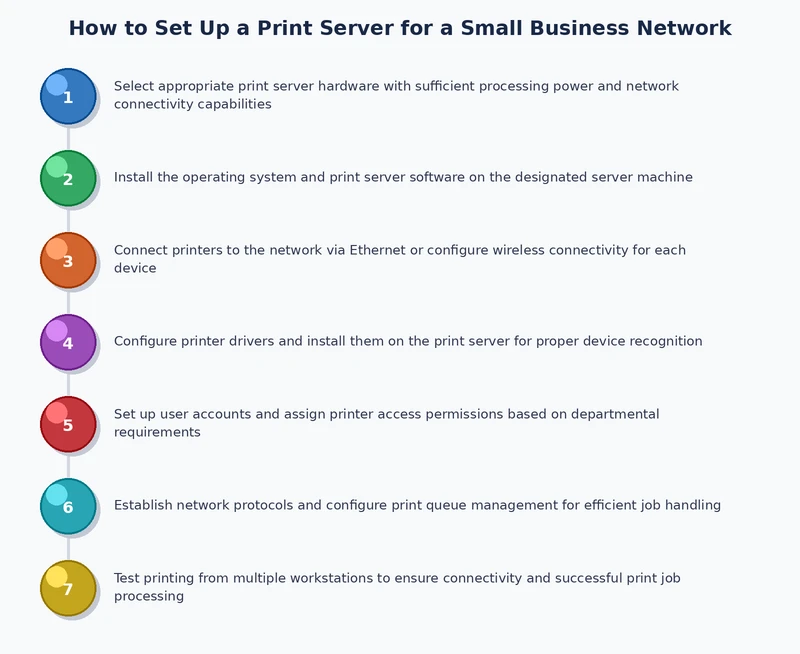

Step-by-Step Guide: Print Server Small Business Setup

Choosing Between Hardware and Software Print Servers

Four main approaches exist, each suited to a different office size and budget:

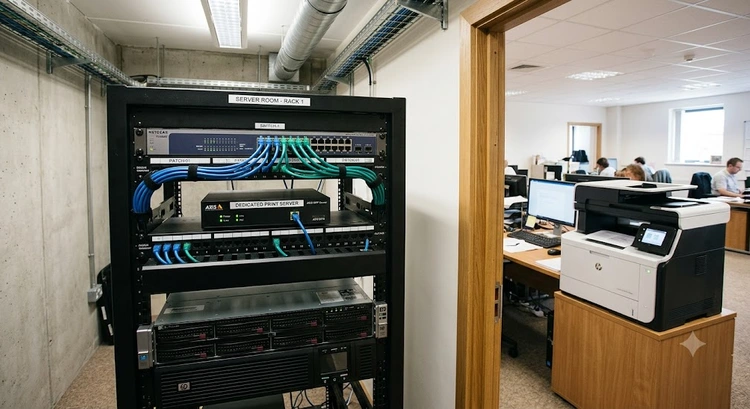

• Dedicated hardware print server (e.g., TP-Link TL-PS110U, Iogear GPSU21): A small standalone box that plugs into the printer via USB and connects to the router via Ethernet. Plug-and-play, no ongoing software maintenance.
• Windows Server role (Print and Document Services): A software-based solution running on an existing Windows Server machine. Offers centralized driver deployment, print logging, and quota management.
• NAS-based print server: A Network Attached Storage device (like QNAP or Synology) running a print server application alongside file sharing duties — efficient for offices that already own a NAS.
• Router USB port: Many modern routers include a basic USB print server built in. Fine for home offices and micro-businesses with one or two users.

Preparing the Network

Before touching hardware, a few prerequisites save hours of troubleshooting later:

• Assign a static IP address to the printer — either configured on the printer itself or reserved in the router's DHCP (Dynamic Host Configuration Protocol, the system that assigns network addresses) settings. Dynamic IPs cause the server to lose track of the printer after every router reboot.
• Confirm the printer is on the same subnet (network segment) as the server and client PCs. Cross-subnet printing requires additional router configuration that adds unnecessary complexity at the small-business scale.
• Verify the printer supports all expected features over a network connection — some budget USB-only models lose duplex (double-sided) or finishing options when accessed through a print server.

Pro tip: Our team always sets the static IP as a DHCP reservation in the router rather than hardcoding it on the printer — this keeps the printer's own network settings at their defaults and makes future reconfiguration faster.

Installation and Configuration

For a Windows Server environment — the most common print server small business setup in offices with five or more users — our team follows this sequence:

1. Open Server Manager → Add Roles and Features → select Print and Document Services.
2. Choose Print Server as the role service; optionally add Internet Printing for remote/VPN access.
3. After installation, open Print Management (printmanagement.msc).
4. Right-click Printers → Add Printer → use the TCP/IP address method, entering the printer's static IP.
5. Install the manufacturer's latest driver when prompted — never use the Windows generic driver, which omits key features.
6. Right-click the printer → Properties → Sharing tab → enable sharing and assign a short share name with no spaces.
7. On each client PC, browse to \\[server-name]\[share-name] — Windows installs the driver automatically from the server.

For a hardware print server, the process is simpler: connect the device between printer and router, access its web admin page (usually 192.168.x.x — check the included manual), assign a static IP, then add a Standard TCP/IP Port on each client PC pointing to that address.

Weighing the Benefits and Drawbacks

Advantages Our Team Has Observed

• No host PC dependency: Unlike sharing a printer from a workstation, a dedicated print server operates independently — one employee's morning reboot doesn't knock out printing for everyone.
• Centralized driver management: Windows Server pushes drivers to client machines automatically, eliminating the manual install process across every workstation.
• Print auditing and quotas: Server-level logging records who printed what, when, and how many pages — useful for cost tracking and compliance.
• Legacy printer life extension: Older USB-only printers get network access they'd otherwise lack, delaying hardware replacement costs.
• Multi-OS support: A single Windows Server print server can host drivers for Windows, macOS, and Linux clients simultaneously.

Drawbacks Worth Considering

• Single point of failure: If the server goes offline, everyone loses printing. Businesses with mission-critical print operations should plan a backup path.
• Driver conflicts between 32-bit and 64-bit versions on the same server have historically caused instability — less common now, but still a factor on older infrastructure.
• Small teams of one or two people may find the setup complexity isn't justified compared to simple direct Wi-Fi printing.
• Hardware print servers occasionally need firmware updates that require brief downtime.

Warning: Businesses running time-sensitive printing — shipping labels, invoices, point-of-sale receipts — should establish a failover printer or an alternate print path before relying entirely on a single server.

When a Print Server Makes Sense — and When It Doesn't

Situations Where a Print Server Adds Clear Value

• Five or more users sharing one or two printers: At this scale, ad-hoc sharing from a single workstation becomes a bottleneck and a recurring IT complaint.
• Multiple printer models on one network: A server can host drivers for a laser office printer, a photo inkjet, and a thermal label printer — all managed from one console. Our in-depth look at the MUNBYN thermal label printer includes notes on network connectivity that apply directly to print server integration.
• Compliance or auditing requirements: Healthcare, legal, and financial offices that need print logs gain immediate value from server-side logging.
• Remote workers on VPN: Internet Printing Protocol (IPP) support on Windows Server enables off-site printing through a VPN connection.
• Offices with legacy USB-only printers that still work well but lack modern Wi-Fi capabilities.

When It's Probably Not Worth the Effort

• Solo operators or two-person teams with a single modern Wi-Fi printer — basic wireless direct printing handles this without extra infrastructure.
• Offices where cloud printing portals (vendor-specific solutions like HP ePrint or equivalent) already meet all needs without on-premise management.
• Very tight budgets where even a $50 hardware server creates meaningful cost pressure — the router's built-in USB port may be sufficient.
• Environments where everyone uses laptops that connect directly to the printer via Wi-Fi with no persistent queue management needed.

According to Wikipedia's overview of print server technology, implementations range from dedicated hardware appliances to software services integrated into operating systems — the right choice depends on scale, budget, and management overhead tolerance.

Mistakes That Derail Most Print Server Projects

Configuration Errors

• Skipping static IP assignment: Dynamic IP addresses cause the printer to vanish from the server's view after router reboots. Our team encounters this more than any other setup failure.
• Using generic Windows drivers: Generic drivers frequently omit duplex printing, tray selection, and color profile management. Always install the manufacturer-supplied driver package.
• Firewall rules left at defaults: Windows Firewall on the server must explicitly allow File and Printer Sharing. A surprising number of setups fail here, with no obvious error message on the client side.
• Incorrect subnet configuration: Placing the print server on a different subnet than the client PCs breaks network discovery without additional router-level multicast routing.

Management Oversights

• Neglecting to configure print permissions — by default, all authenticated users can print in color and without page limits. Most businesses benefit from restricting large or color jobs to specific user groups.
• Failing to monitor the Print Spooler service (spoolsv.exe): this service can crash silently, stopping all printing with no obvious error on client PCs. A simple monitoring alert saves significant frustration.
• Not verifying connectivity from macOS or Linux clients before declaring setup complete — Windows-to-Windows printing can work perfectly while macOS clients silently fail due to Bonjour (Apple's network discovery protocol) or driver issues.

Insider note: Our team always tests every new print server setup from at least one macOS machine before signing off. Windows clients can succeed while Mac clients fail without any error surfacing on the server side.

For offices also battling printer hardware issues alongside network problems, our guide on how to fix streaky printer output covers the hardware-side root causes that no server configuration adjustment can resolve.

How Small Teams Are Using Print Servers in Practice

Retail and E-Commerce Fulfillment

Small retail businesses with back-office shipping stations commonly run a thermal label printer alongside a laser invoice printer through a Windows PC acting as a software server. Warehouse staff print shipping labels from one workstation while the front desk prints receipts from another — all routing through a shared queue with no conflicts. Our team has configured this exact setup for small Shopify and Etsy fulfillment operations where print reliability directly affects order throughput.

Creative Studios and Design Agencies

Design studios often run a high-quality photo or fine-art printer alongside a standard office laser. A print server allows designers to send large-format graphics to the photo printer while office staff print documents to the laser — with centrally maintained driver profiles ensuring color settings stay consistent across the team. Studios printing on specialty media like glossy paper (see our guide on printing on glossy photo paper) particularly benefit from server-managed color profiles that prevent individual workstations from overriding calibration settings.

Medical and Legal Offices

These environments often require print auditing for internal compliance. Windows Server's built-in logging records every job — user, document name, page count, and timestamp — creating an audit trail for internal policy requirements. Enabling this requires only a checkbox in Print Management server properties, but it's frequently overlooked during initial setup.

Diagnosing and Fixing Common Print Server Issues

Jobs Stuck in the Queue

A frozen print queue is the most common support call our team handles after initial deployment. The fix follows a reliable sequence:

1. Open Services (services.msc) on the server.
2. Stop the Print Spooler service.
3. Navigate to C:\Windows\System32\spool\PRINTERS and delete all files inside (not the folder itself).
4. Restart the Print Spooler service.
5. Resubmit the print job.

If jobs keep getting stuck after this procedure, the culprit is almost always a corrupted or mismatched driver. Removing the printer from Print Management and reinstalling with a fresh driver download resolves most persistent cases.

Clients Can't Find the Printer

When workstations can't discover the shared printer, these are the most frequent causes our team identifies:

• Network discovery is disabled on the client PC — Control Panel → Network and Sharing Center → Advanced sharing settings → turn on Network discovery.
• Server firewall blocking connections — verify that File and Printer Sharing exceptions are active in Windows Firewall on the server.
• Wrong hostname or IP in the printer path — confirm via ping from the client to the server's IP address before troubleshooting further.
• Driver architecture mismatch — if the server runs 64-bit Windows but has an old 32-bit additional driver installed, some clients will fail silently. Remove and reinstall both driver architectures cleanly.

Slow Print Performance

Jobs that spool slowly or take long to start printing usually trace back to one of three causes:

• Large file sizes saturating the network connection: high-resolution graphics and photo files can be tens of megabytes. Scheduling large print jobs during off-peak hours is a practical workaround until a network upgrade is feasible.
• Insufficient RAM on the server: the print spooler renders jobs in memory before sending them to the printer. On older servers, 4GB of RAM can become a bottleneck for graphic-heavy workloads — 8GB is the practical minimum for mixed print environments today.
• Driver rendering mode mismatch: switching between "render on client" and "render on server" in the driver's advanced properties sometimes dramatically improves speed, depending on where the processing bottleneck sits.

For offices using photo or specialty printers in shared environments, driver profile management is as important as server configuration. Our article on printing on cardstock without jams covers media-specific driver settings that also apply when cardstock or specialty stock is loaded in a shared office printer managed through a server.

Final Thoughts

A well-planned print server small business setup is one of the most practical infrastructure investments a growing office can make — reducing printer-related complaints, centralizing queue and driver management, and giving every workstation dependable shared access to hardware. Our team recommends starting with an honest audit of user count, printer models, and current pain points, then choosing between a hardware appliance or a Windows Server role based on that reality. Most businesses that commit to the setup find the initial configuration effort pays off within weeks in reduced IT interruptions alone — so the concrete next step is mapping out the network, assigning that static IP, and getting the first print server online.
